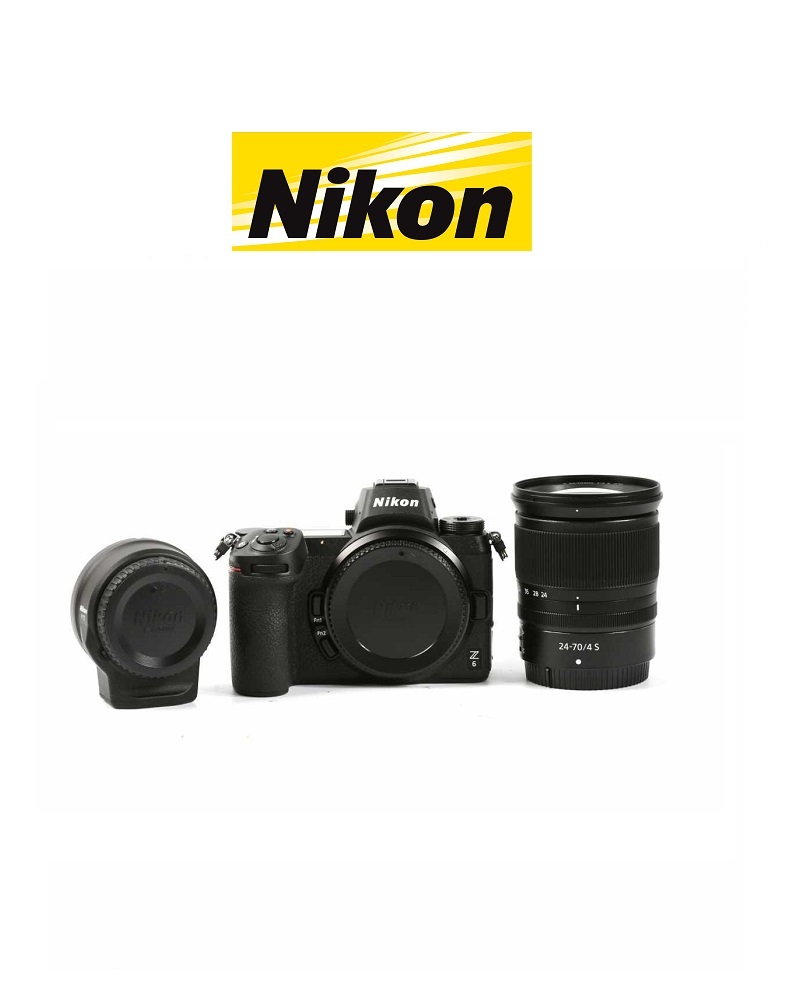

NIKON Z6
Designed with a compact body, while providing superior high-sensitivity performance and outstanding video features, the Z 6 — featuring 24.5 effective megapixels — is ready to excel in a broad range of shooting scenarios. Taking advantage of the new EXPEED 6 image-processing engine, it achieves a standard sensitivity range of ISO 100-51200, reducing noise effectively even at the higher end while maintaining resolution. Continuous shooting at up to approx. 12 fps is also available. Professional and amateur filmmakers alike will appreciate the camera’s wide array of movie functions, including full-pixel readout full-frame 4K UHD, Full HD 100/120p and 10-bit N-Log.
Technical data:-
Type | Digital camera with support for interchangeable lenses |
Lens mount | Nikon Z mount |
Total pixels | 25.28 million |
Image sensor format | FX |
Image sensor type | CMOS |
Sensor size | 35.9 mm x 23.9 mm |
Dust-reduction system | Image Dust Off reference data (requires Capture NX-D); image sensor cleaning |
Effective pixels | 24.5 million |
Image size (pixels)
|
FX (36x24) image area (L) 6048 x 4024 ( 24.3 million) (M) 4528 x 3016 ( 13.7 million) (S) 3024 x 2016 ( 6.1 million) DX (24x16) image area (L) 3936 x 2624 ( 10.3 million) (M) 2944 x 1968 ( 5.8 million) (S) 1968 x 1312 ( 2.6 million) 1 : 1 (24x24) image area (L) 4016 x 4016 ( 16.1 million) (M) 3008 x 3008 ( 9.0 million) (S) 2000 x 2000 ( 4.0 million) 16 : 9 (36x20) image area (L) 6048 x 3400 ( 20.6 million) (M) 4528 x 2544 ( 11.5 million) (S) 3024 x 1696 ( 5.1 million) Photographs taken during movie recording at a frame size of 3840 x 2160: 3840 x 2160 Photographs taken during movie recording at other frame sizes: 1920 x 1080 |
File format
|
NEF (RAW): 12 or 14 bit (lossless compressed, compressed, or uncompressed); large, medium, and small available (medium and small images are recorded at a bit depth of 12 bits using lossless compression) TIFF (RGB) JPEG: JPEG-Baseline compliant with fine (approx. 1 : 4), normal (approx. 1 : 8), or basic (approx. 1 : 16) compression; optimal quality compression available NEF (RAW)+JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats |
Picture Control system
|
Auto, Standard, Neutral, Vivid, Monochrome, Portrait, Landscape, Flat Creative Picture Controls (Dream, Morning, Pop, Sunday, Somber, Dramatic, Silence, Bleached, Melancholic, Pure, Denim, Toy, Sepia, Blue, Red, Pink, Charcoal, Graphite, Binary, Carbon); selected Picture Control can be modified; storage for custom Picture Controls
|
Media | XQD |
Viewfinder
controls |
1.27-cm/0.5-in. approx. 3690k-dot (Quad VGA) OLED electronic viewfinder with color balance and auto and 11-level manual brightness |
Magnification | Approx. 0.8x (50 mm lens at infinity, -1.0 m(*1)) |
Eyepoint | 21 mm (-1.0 m(*1); from center surface of viewfinder eyepiece lens) |
Diopter adjustment | -4 to +2 m(*1) |
Eye sensor | Automatically switches between monitor and viewfinder displays |
Compatible lenses
|
Z mount NIKKOR lenses F mount NIKKOR lenses with mount adapter; restrictions may apply |
Type
|
Electronically-controlled vertical-travel focal-plane mechanical shutter; electronic front-curtain shutter; electronic shutter |
Speed
|
1/8000 to 30 s in steps of 1/3 or 1/2 EV, bulb, time, X200 |
Flash sync speed
|
X=1/200 s; synchronizes with shutter at 1/200 s or slower; Auto FP High-Speed sync supported |
Modes
|
Single frame, low-speed continuous, high-speed continuous, high-speed continuous (extended), self-timer |
Frame coverage | Approx. 100% horizontal and 100% vertical |
Approximate maximum frame advance rate(measured under Nikon-specified test conditions) | Up to 12 fps Low-speed continuous: 1 to 5 fps High-speed continuous: 5.5 fps High-speed continuous (extended): 12 fps (14-bit NEF/RAW: 9 fps) |
Self-timer
2 s, 5 s, 10 s, 20 s; 1 to 9 exposures at intervals of 0.5, 1, 2, or 3 s |
Metering system
TTL metering using camera image sensor |
Metering mode
|
Matrix metering Center-weighted metering: Weight of 75% given to 12 mm circle in center of frame; weighting can instead be based on average of entire frame Spot metering: Meters 4 mm circle (about 1.5% of frame) centered on selected focus point Highlight-weighted metering |
Mode
|
Auto; programmed auto with flexible program (P); shutter-priority auto (S); aperture-priority auto (A); manual (M); user settings (U1, U2, U3) |
Exposure compensation | –5 to +5 EV in increments of 1/3 or 1/2 EV available in modes P, S, A, and M |
Exposure lock | Luminosity locked at detected value
|
ISO sensitivity (Recommended Exposure Index)
|
ISO 100 to 51200 Can also be set to approx. 0.3, 0.5, 0.7, or 1 EV (ISO 50 equivalent) below ISO 100 or to approx. 0.3, 0.5, 0.7, 1, or 2 EV (ISO 204800 equivalent) above ISO 51200; auto ISO sensitivity control available |
Active D-Lighting | Can be selected from Auto, Extra high, High, Normal, Low, or Off |
Multiple exposure | Add, average, lighten, darken |
Other options
|
HDR (high dynamic range), photo mode flicker reduction |
Autofocus system | Hybrid phase-detection/contrast AF with AF assist |
Detection range (ISO 100, f/2.0 lens, 20 °C/68 °F) | -2 to +19 EV (-4 to +19 EV with low-light AF) |
Focus points | (single-point AF, photo shooting mode, FX image area)
273 |
AF-area mode
|
Pinpoint, single-point, and dynamic-area AF (pinpoint and dynamic-area AF available in photo mode only); wide-area AF (S); wide-area AF (L); auto-area A |
Focus lock
|
Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing center of sub-selector |
Camera VR | 5-axis image sensor shift |
Lens VR
|
Lens shift (available with VR lenses)
Control TTL: i-TTL flash control; i-TTL balanced fill-flash is used with matrix, center-weighted, and highlight-weighted metering, standard i-TTL fill-flash with spot metering |
Mode | Front-curtain sync, slow sync, rear-curtain sync, red-eye reduction, red-eye reduction with slow sync, slow rear-curtain sync, off |
Flash compensation
|
-3 to +1 EV in increments of 1/3 or 1/2 EV available in modes P, S, A, and M |
Flash-ready indicator
|
Lights when optional flash unit is fully charged; flashes as underexposure warning after flash is fired at full output |
Operating environment
|
Temperature: 0 °C to 40 °C (+32 °F to 104 °F) Humidity: 85% or less (no condensation) |
Weight
|
Approx. 675 g ( 1 lb. 7.9 oz. ) with battery and memory card but without body cap; approx. 585 g/1 lb. 4.7 oz. (camera body only) |
Dimensions (W x H x D) | Approx. 134 x 100.5 x 67.5 mm ( 5.3 x 4 x 2.7 in.) |
Tripod socket | 1/4–in. (ISO 1222) |
Audio recording device
|
Built-in stereo or external microphone with attenuator option; sensitivity adjustable |
AC adapter | EH-5c/EH-5b AC adapter (requires EP-5B power connector, which is available separately) |
Battery | One EN-EL15b rechargeable Li-ion battery; EN-EL15a/EN-EL15 can also be used, but note that you may not be able to take as many pictures on a single charge and that charging AC adapter can be used to charge EN-EL15b batteries only |
Wi-Fi | IEEE 802.11b/g/n 2412 to 2462 MHz (channel 11) 2.4 GHz band: 7.4 dBm Open system, WPA2-PSK |
Bluetooth
|
Bluetooth Specification Version 4.2 Bluetooth: 2402 to 2480 MHz Bluetooth Low Energy: 2402 to 2480 MHz Bluetooth: 1.9 dBm Bluetooth Low Energy: 0.4 dBm |
Range (line of sight) | Approximately 10 m (32 ft) without interference; range may vary with signal strength and presence or absence of obstacles |
Accessory terminal
|
Can be used with MC-DC2 and other optional accessories
Nikon Creative Lighting System (CLS) i-TTL flash control, radio-controlled Advanced Wireless Lighting, optical Advanced Wireless Lighting, modeling illumination, FV lock, Color Information Communication, Auto FP High-Speed Sync, unified flash control |
White balance
Accessory shoe ISO 518 hot-shoe with sync and data contacts and safety lock |
Auto (3 types), natural light auto, direct sunlight, cloudy, shade, incandescent, fluorescent (7 types), flash, choose color temperature (2500 K–10,000 K), preset manual (up to 6 values can be stored), all except choose color temperature with fine-tuning |
File format | MOV, MP4 |
Video compression | H.264/MPEG-4 Advanced Video Coding |
Audio recording format | Linear PCM, AAC |
Bracketing types | Exposure, flash, white balance, ADL |
Metering system | TTL exposure metering using main image sensor |
Metering mode | Matrix, center-weighted, or highlight-weighted |
Frame size (pixels) and frame rate
|
3840 x 2160 (4K UHD); 30p (progressive), 25p, 24p 1920 x 1080; 120p, 100p, 60p, 50p, 30p, 25p, 24p 1920×1080 (slow-mo); 30p ×4, 25p ×4, 24p ×5 Actual frame rates for 120p, 100p, 60p, 50p, 30p, 25p, and 24p are 119.88, 100, 59.94, 50, 29.97, 25, and 23.976 fps respectively; quality selection available at all sizes except 3840 x 2160, 1920 x 1080 120p/100p, and 1920 x 1080 slow-mo, when quality is fixed at high |
ISO sensitivity (Recommended Exposure Index)
|
Auto: Auto ISO sensitivity control (ISO 100 to 51200) P, S, A: Auto ISO sensitivity control (ISO 100 to Hi 2) with selectable upper limit M: Auto ISO sensitivity control (ISO 100 to Hi 2) available with selectable upper limit; manual selection (ISO 100 to 51200 in steps of 1/3 or 1/2 EV) with additional options available equivalent to approximately 0.3, 0.5, 0.7, 1, or 2 EV (ISO 204800 equivalent) above ISO 51200 |
Audio input | Stereo mini-pin jack (3.5 mm diameter; plug-in power supported) |
Audio output | Stereo mini-pin jack (3.5 mm diameter) |
HDMI output connector | Type C HDMI connector |
Other options | Time-lapse movies, electronic vibration reduction, time codes, movie log output (N-Log) |
Monitor size | 8 -cm ( 3.2 –in.) diagonal |
Active D-Lighting | Can be selected from Same as photo settings, Extra high, High, Normal, Low, or Off |
Monitor type | Tilting TFT touch-sensitive LCD with 170° viewing angle, approximately 100% frame coverage, and color balance and 11-level manual brightness control. |
Monitor resolution | Approx. 2100 k-dot |
Playback
|
Full-frame and thumbnail (4, 9, or 72 images) playback with playback zoom, playback zoom cropping, movie playback, photo and/or movie slide shows, histogram display, highlights, photo information, location data display, picture rating, and auto image rotation |
USB connector
|
Type C connector (SuperSpeed USB) ; connection to built-in USB port is recommended |
