Description
The B&W energy.case PRO500 offers energy solutions for professional use.
The energy.case PRO500 is splash-proof, shock-proof and vibration-proof. The robust design allows use even under the most difficult conditions.
The durable and safe lithium iron phosphate batteries are fully operational even in demanding temperatures.
The flexible charging options through solar, mains, car and truck make handling particularly easy. In addition, the units are equipped with an MPPT (maximum power point tracking) system. This maximizes the solar yield when using solar cells.
All data at a glance:
- Battery capacity: 500 Wh
- Voltage output 1: 230 V/50 Hz
- Continuous power output 1: 300 W (on request 500 W)
- Sine wave: pure sine wave
- Voltage output 2 (USB): 5 V
- Continuous power output 2 (USB): 15 W
- Lithium iron phosphate battery: operation from -20°C to +45°C (Charging possible from 0°C)
- Dimensions: 470 x 365 x 190 mm
- Weight: 10.9 kg
- Tightness: IP54
- Charge sources: AC adapter, 12 V solar cell, 12 V car or 24 V truck
- Charge control: MPPT (maximize solar power)
- Parallel operation: permanently possible (charging and discharging simultaneously)
Output voltage
The energy case PRO500 has a 230V AC as well as a 5V USB DC output.

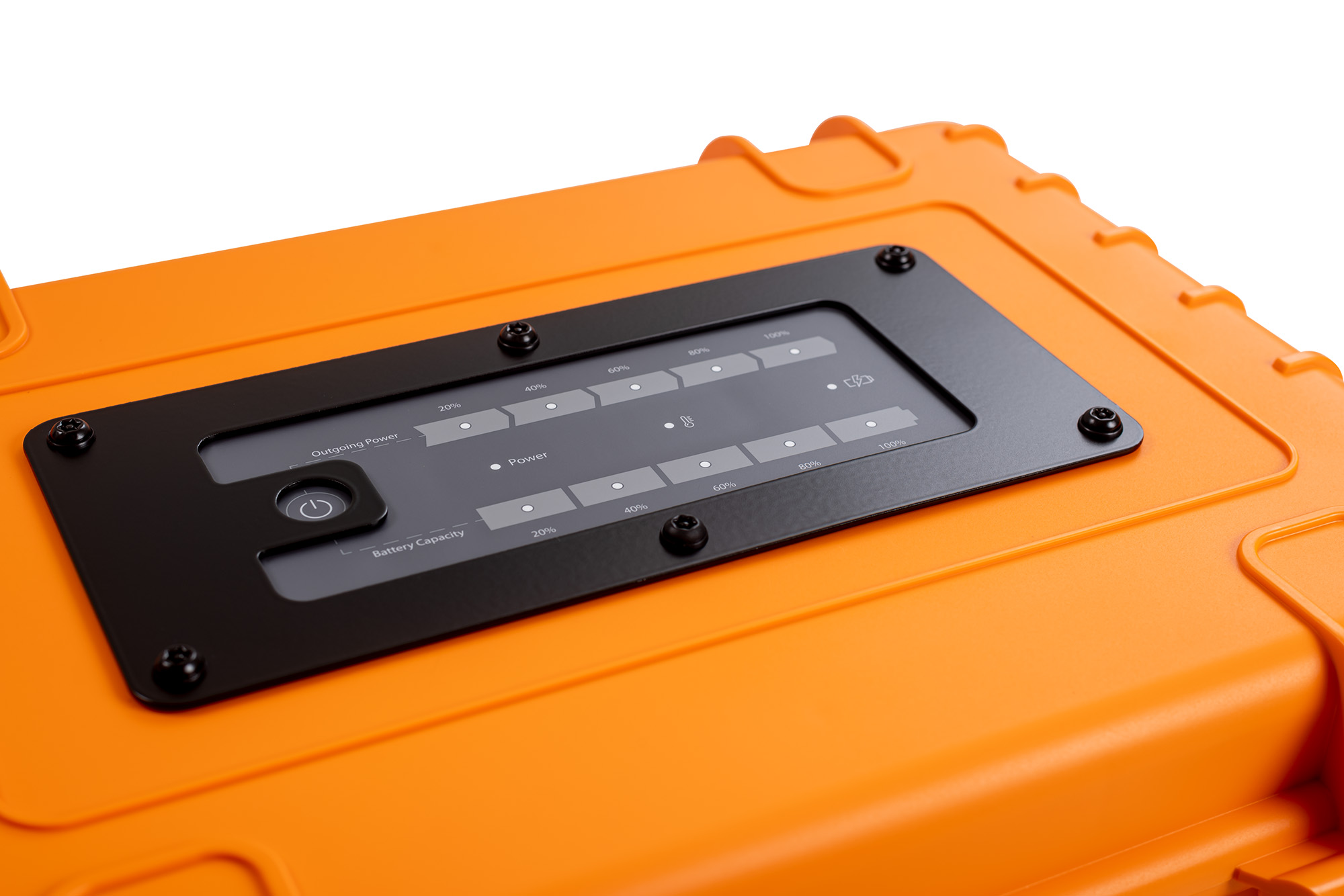

Power control unit
The waterproof and shatterproof membrane keypad provides information on the most important operating parameters and has a power-on lock for transport.

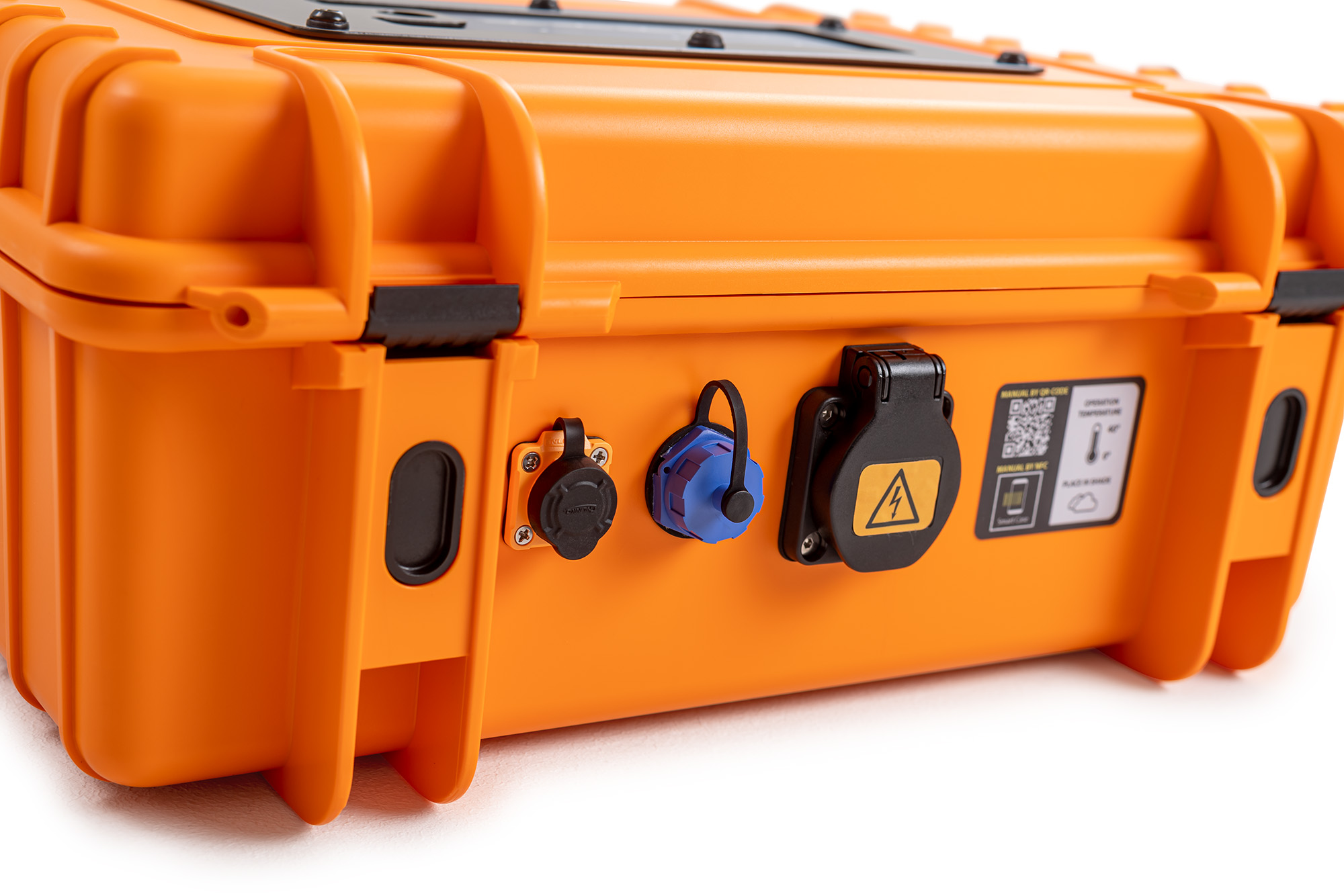

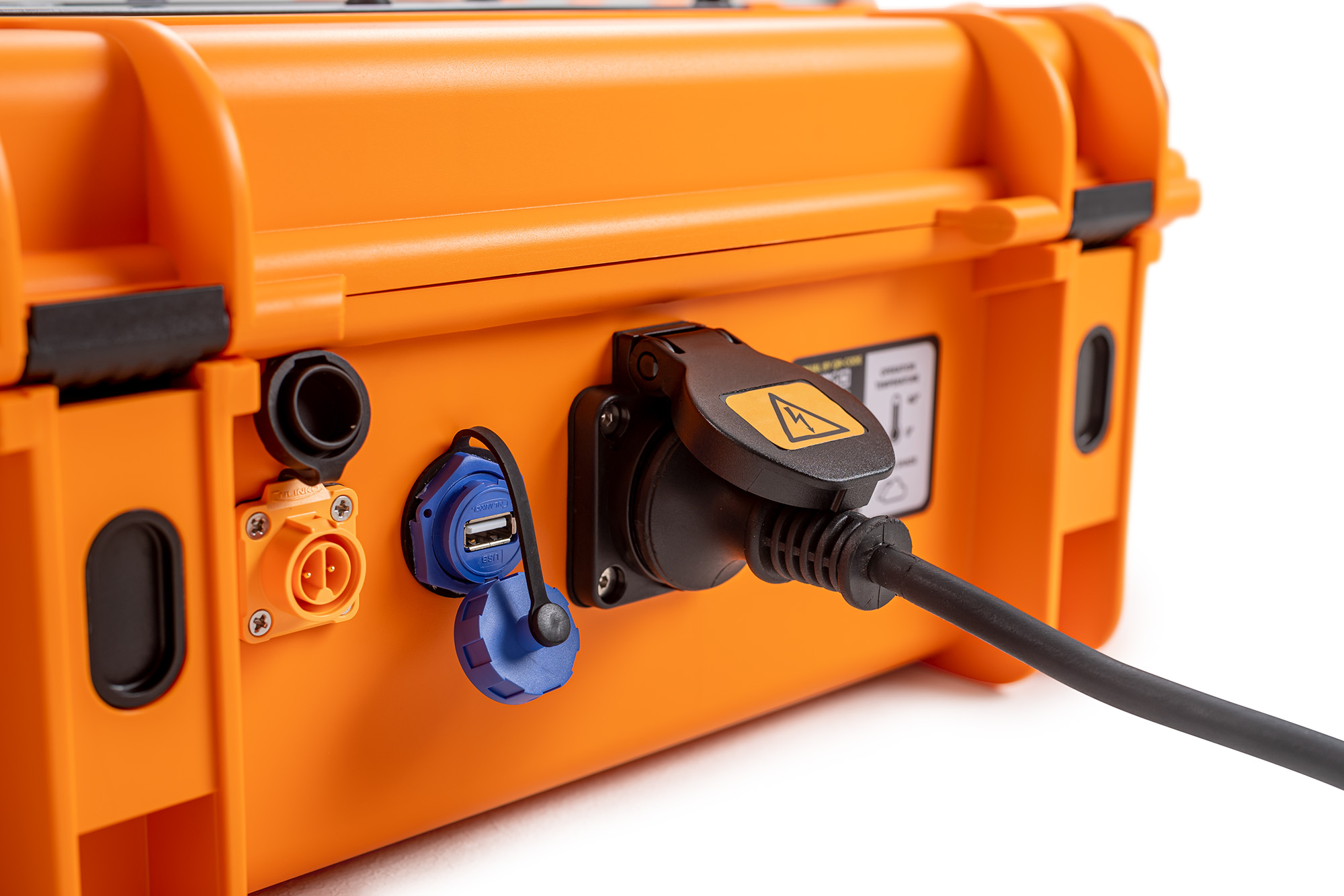

Connector systems
In addition to B&W’s standard configuration, customized connectors can be installed. Customization is possible from a quantity of one energy.case.
Charging options
Charging is done by a 230 volt charger, at the cigarette lighter, at the 24 V connection of a truck or by the foldable solar cell. The vehicle battery is not overloaded in the process. #
Stable battery performance
The durable and safe lithium iron phosphate batteries are fully operational even in demanding temperatures.
Specifications:
| energy.case PRO500 AC |
energy.case PRO1500 AC |
energy.case PRO500 DC |
energy.case PRO1500 DC |
|
| Battery capacity | 500Wh | 1500Wh | 500Wh | 1500Wh |
| Connectors | 1 x 230V socket, 1 x USB A, 1 x charging input |
1 x 230V socket, 2 x USB A, 2 x charging input |
3x B&W DC socket, 1 x USB A, 1 x charging input |
1x B&W DC socket, 2 x USB A, 2 x charging input |
| Continuous power | 300W | 300 or 1000W | 300W | 24V up to 500W further configurations upon request |
| Charging power | 200W | 200W | 200W | 200W |
| Charging options | 230V charger, optional: 12V car, 24V truck, solar | 230V charger, optional: 12V car, 24V truck, solar | 230V charger, optional: 12V car, 24V truck, solar | 230V charger, optional: 12V car, 24V truck, solar |
| Operating temperature | -20°C – +40°C | -20°C – +40°C | -20°C – +40°C | -20°C – +40°C |
| Further information | External keypad, IP54 | Available with external or internal keypad, IP65 | Internal keypad, IP65 | Available with external or internal keypad, IP65 |
| Dimensions | 47 x 36,5 x 19 cm | 66 x 49 x 33,5 cm | 42 x 32,5 x 18 cm | 66 x 49 x 33,5 cm |
| Weight | 10,9 kg | 29,9 kg | 8,7 kg | 29,9 kg |
